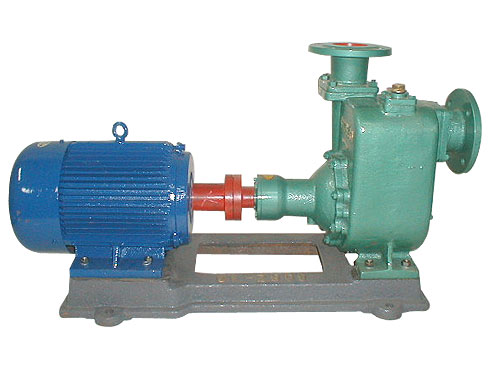

CBZ type boat-used self-priming pump |
|
 |
¡¡¡¡CBZ style pump is a single grade centrifugal self-absorbing pump. The pump shaft applies the acidproof stainless steel and the wheel applies the silicon copper. The pump body is steel alloy. It is suitable for transmitting sea-water, rare sulphuric acid, diesel oil. The temperature of the transmitted material can not pass 75¡æ. This pump is suitable for varieties of usage on the boat, it also can be vastly used in the daily water transmitting of cities and countries.
¡¡¡¡At the next running, CBZ pump dont need adding water. With liquid location auto-control box, it can have auto-pumping function. |
| |
|
Type |
Flow Q
£¨m3/h) |
Lift H
(m) |
Efficiency
¦Ç
(%) |
Speed n
£¨r/min) |
Power N
£¨K W£© |
Suction lift
(m) |
Drawing time
(min/5m) |
Mass
£¨kg) |
Matching motor type |
|
40CBZ-20 |
12 |
20 |
56 |
2880 |
1.5 |
6 |
2.5 |
25 |
Y90S-2 |
|
40CBZ-32 |
12 |
32 |
50 |
2900 |
2.2 |
6 |
2.5 |
30 |
Y90L-2 |
|
50CBZ-30 |
22 |
30 |
55 |
2900 |
4 |
7 |
2.5 |
30 |
Y112M-2 |
|
65CBZ-50 |
26 |
50 |
56 |
2900 |
7.5 |
6 |
2.5 |
48 |
Y132S2-2 |
|
80CBZ-30 |
50 |
30 |
68 |
2900 |
7.5 |
6 |
2.5 |
48 |
Y132S2-2 |
|
80CBZ-50 |
30 |
50 |
55 |
2900 |
11 |
6.5 |
2.5 |
48 |
Y160M1-2 |
|
80CBZ-65 |
48 |
65 |
63 |
2900 |
15 |
6.5 |
2.5 |
80 |
Y160M2-2 |
|
80CBZ-65 |
48 |
65 |
63 |
2900 |
18.5 |
6.5 |
2.5 |
80 |
Y160L-2 |
|
100CBZ-20 |
90 |
20 |
73 |
2900 |
7.5 |
6 |
2.5 |
73 |
Y132S2-2 |
|
100CBZ-20 |
90 |
20 |
65 |
2900 |
11 |
6 |
2.5 |
85 |
Y116M1-2 |
|
100CBZ-38 |
100 |
38 |
72.5 |
2900 |
15 |
5 |
2.5 |
98 |
Y160M2-2 |
|
100CBZ-50 |
60 |
50 |
64 |
2900 |
15 |
6.5 |
2.5 |
80 |
Y160M2-2 |
|
100CBZ-60 |
60 |
60 |
63 |
2900 |
18.5 |
6.5 |
2.5 |
80 |
Y160L-2 |
|
125CBZ-60 |
140 |
60 |
80 |
2950 |
37 |
6 |
2.5 |
115 |
Y200L2-2 |
|
150CBZ-40 |
150 |
40 |
75.5 |
2900 |
22 |
5 |
2.5 |
135 |
Y180M-2 |
Notes: From the clutch to the pump, 80CBZ-30 pump is clockwise rotation and other pumps are counter clockwise rotation. |
|
|
